Integrate Tricentis Tosca with App Percy

Learn how to integrate Tricentis Tosca with App Percy to run visual tests on your mobile app.

App Percy works directly with Tricentis Tosca Commander, allowing you to add visual testing to your existing Tosca mobile test cases without creating or maintaining separate test suites.

This integration supports mobile app tests that run on BrowserStack App Automate. Tosca drives the app on a real device, and App Percy captures screenshots of that session.

You control the Percy CLI from your test case, using the StartPercyCLI and StopPercyCLI modules. You don’t start or stop the CLI from a terminal.

Testing a website instead of a mobile app? This page covers mobile app tests. To add visual testing to your Tosca web test cases, check Integrate Tricentis Tosca with Percy.

App Percy-Tosca integration workflow

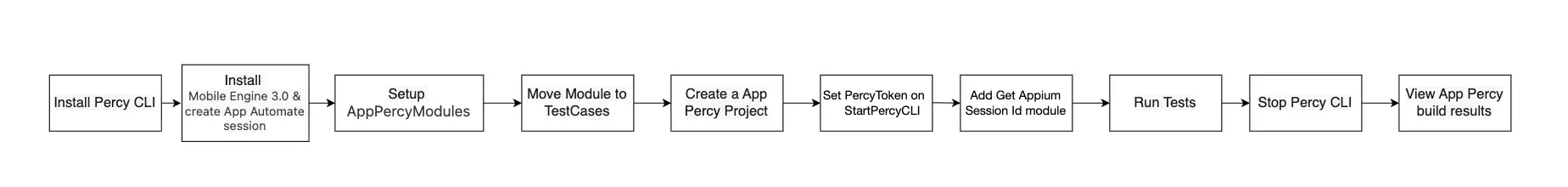

The following diagram illustrates how App Percy integrates with Tosca to capture and process visual screenshots during test execution.

Flow from installing the Percy CLI and Mobile Engine 3.0, through configuring AppPercyModules and the token, to running tests and viewing results

Getting started

App Percy’s Tosca integration is a DLL extension that adds three modules to Tosca Commander. Before you begin, ensure you have the following:

Tosca supports Windows environments only.

Steps

Follow these steps to set up the App Percy Tosca integration:

Step 1: Install or update the @percy/cli package using the following command:

npm install --global @percy/cli

Step 2: Download the AppPercyTosca.dll file from the latest release and copy it to the following location:

C:\Program Files (x86)\TRICENTIS\Tosca Testsuite\Percy

Step 3: In Tosca Commander, navigate to:

Project settings → TBox → Extension loading → Extensions Folders

Add the previously copied path to the Extensions list, then restart Tosca Commander.

The Extensions field location in Tosca Commander project settings

Step 4: Import the AppPercyScreenshot.tsu file from the same release. The import adds an AppPercyModules folder with all three modules already configured, so you don’t create any of them by hand:

Module What it does
StartPercyCLI Starts the Percy CLI and waits until it’s ready.
AppPercyScreenshot Captures one screenshot.
StopPercyCLI Stops the CLI, which finalizes the build and reports the build link.

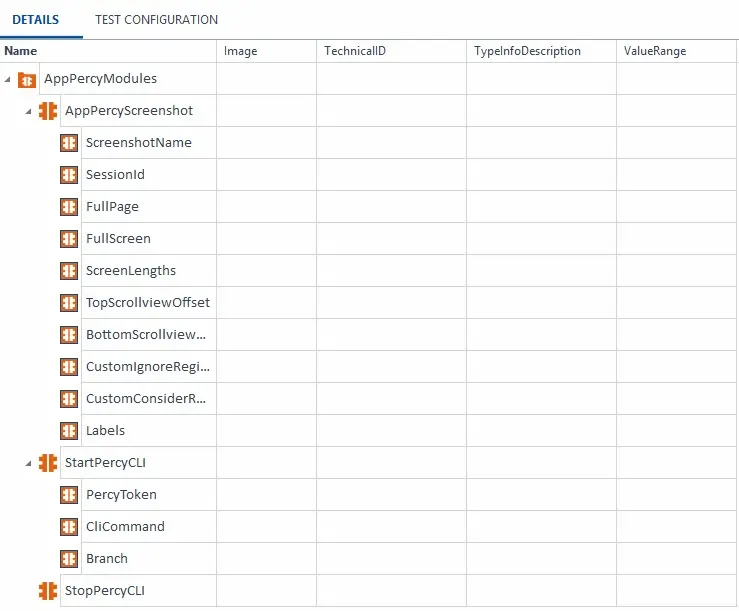

The AppPercyModules folder in Tosca Commander showing the StartPercyCLI, AppPercyScreenshot, and StopPercyCLI modules with their parameters

Step 5: Add the StartPercyCLI module as the first App Percy step in your test case, and set the following values:

  • PercyToken: your App Percy project token. Sign in to App Percy and create a new App project. App Percy generates the token when the project is created.
  • CliCommand: the full path to the percy executable, such as C:\Users\<your-username>\AppData\Roaming\npm\percy. Set this only if percy isn’t on the path that Tosca uses.
  • Branch: the branch name to group builds under, such as release-24.

App Percy groups builds into a history by branch, and the Percy CLI normally reads the branch from the git repository it runs in. A Tosca machine usually doesn’t have one, so set Branch to make sure your builds compare against each other. Set it on StartPercyCLI rather than on a screenshot module, because App Percy creates the build when the CLI starts.

Step 6: Add the built-in Get Appium Session Id module to your test case, after the step that opens your app and before the first screenshot:

  • Find the module under Standard modules → Engines → Mobile.
  • Set Buffer Name to AppiumSessionId.

App Percy needs the Appium session ID to reach the device that App Automate allocated.

Step 7: Add the AppPercyScreenshot module wherever you want to capture a screen, and set the following values:

  • ScreenshotName (Required): a unique name for the screenshot, such as Test.
  • SessionId (Required): the buffer you created in step 6, referenced as {B[AppiumSessionId]}.

The AppPercyScreenshot module supports the following parameters:

Parameter Description Example
ScreenshotName (String) (Required) Unique name for the screenshot. Home
SessionId (String) (Required) Appium session ID of the running session. Pass the buffer written by the Get Appium Session Id module. {B[AppiumSessionId]}
Labels (String) Comma-separated labels for the screenshot. smoke,checkout
FullScreen (Boolean) Set to true when the app runs in full-screen mode. (Default: false) true
FullPage (Boolean) Capture the entire scrollable page. (Default: false) true
ScreenLengths (Integer) Number of screens to capture for a full-page screenshot. 4
TopScrollviewOffset (Integer) Pixels to trim from the top of each full-page tile before stitching. 100
BottomScrollviewOffset (Integer) Pixels to trim from the bottom of each full-page tile. 120
CustomIgnoreRegions (String) Areas to exclude from comparison, in pixels, as top,bottom,left,right. Separate regions with newlines if the value contains any, otherwise with semicolons. XPath and accessibility ID locators aren’t supported. 0,100,0,1080; 2200,2340,0,1080
CustomConsiderRegions (String) Areas to include in comparison, in pixels, as top,bottom,left,right. Separate regions with newlines if the value contains any, otherwise with semicolons. XPath and accessibility ID locators aren’t supported. 0,100,0,1080; 2200,2340,0,1080

You don’t set the device name, OS, version, screen size, or orientation. App Percy reads these from the App Automate session, which knows the device that was actually allocated.

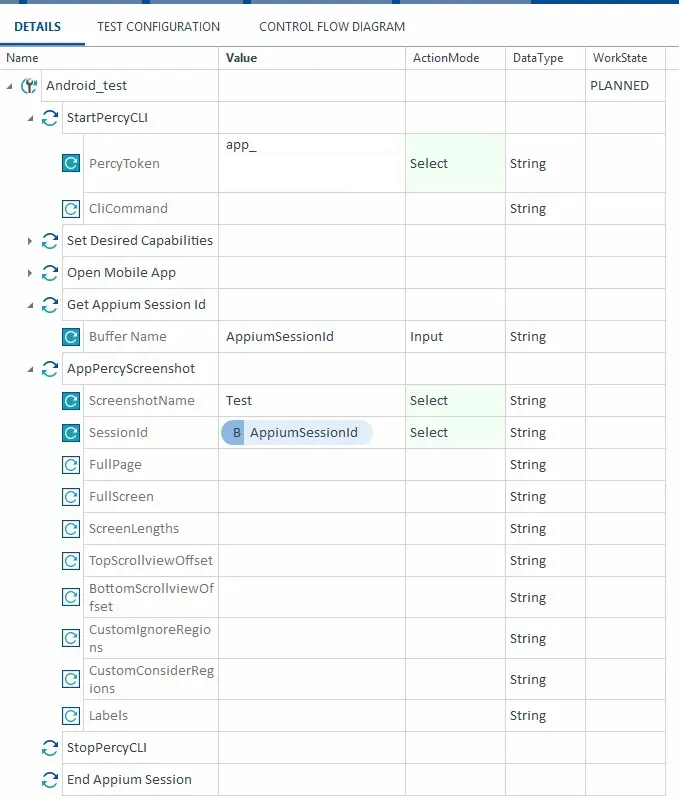

A Tosca test case with StartPercyCLI, Get Appium Session Id writing to a buffer, AppPercyScreenshot referencing it, and StopPercyCLI

Step 8: Add the StopPercyCLI module as the last App Percy step, before you end the Appium session, then run your test case.

Step 9: A build link appears in the CLI output. Select the link to view your App Percy screenshots.

Once set up, Tosca test cases that include the App Percy modules capture and upload screenshots on every run. When you run another build with visual changes to your app, App Percy takes new screenshots and shows you the comparisons between the two runs on the new build.

A failed screenshot doesn’t fail the Tosca step, because a visual check that couldn’t run isn’t a functional regression. To fail the step instead, add a test configuration parameter named percy.ignoreErrors with the value false. To turn App Percy off without editing your test cases, add a test configuration parameter named percy.enabled with the value false.
