Failure Rate by Folders

This widget represents the failure rate of different modules in a browsable folder list. You can hover your mouse over a folder to view the test statistics of that particular module. You can further click through folders and subfolders to compare the failure rate of tests across multiple modules of test suites.

You need to organize your tests into logical folders to get maximum benefit from this widget. While configuring the widget, you can add a filter to include the data you want. You can filter data by several parameters like projects, unique build names, users, tags, etc.

Drill down for more information

Test Observability enables you to investigate more contextual information on all dashboard widgets using the drill-down feature.

You can use the drill-down feature in the Failure Rate by Folders widget to analyze more details on the reasons for test failures. For example, if you see a folder with a large number of test failures, you can investigate the reasons.

Follow these steps to use the drill-down feature:

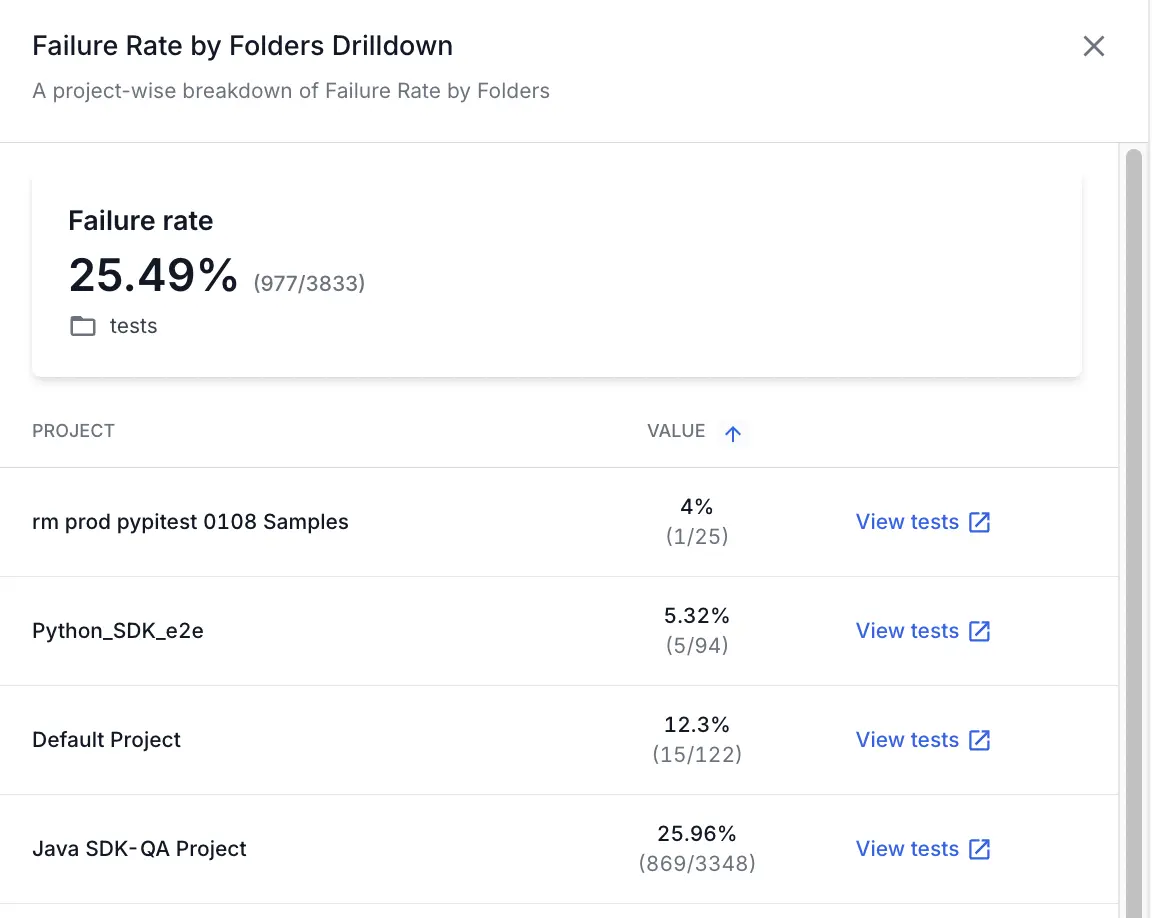

1. Hover on any point in the Failure Rate by Folders widget and click View breakdown. A project-wise breakdown of the metrics for the selected date range opens up in a side pane.
2. Click View tests to get to the tests that contribute to the test failures.

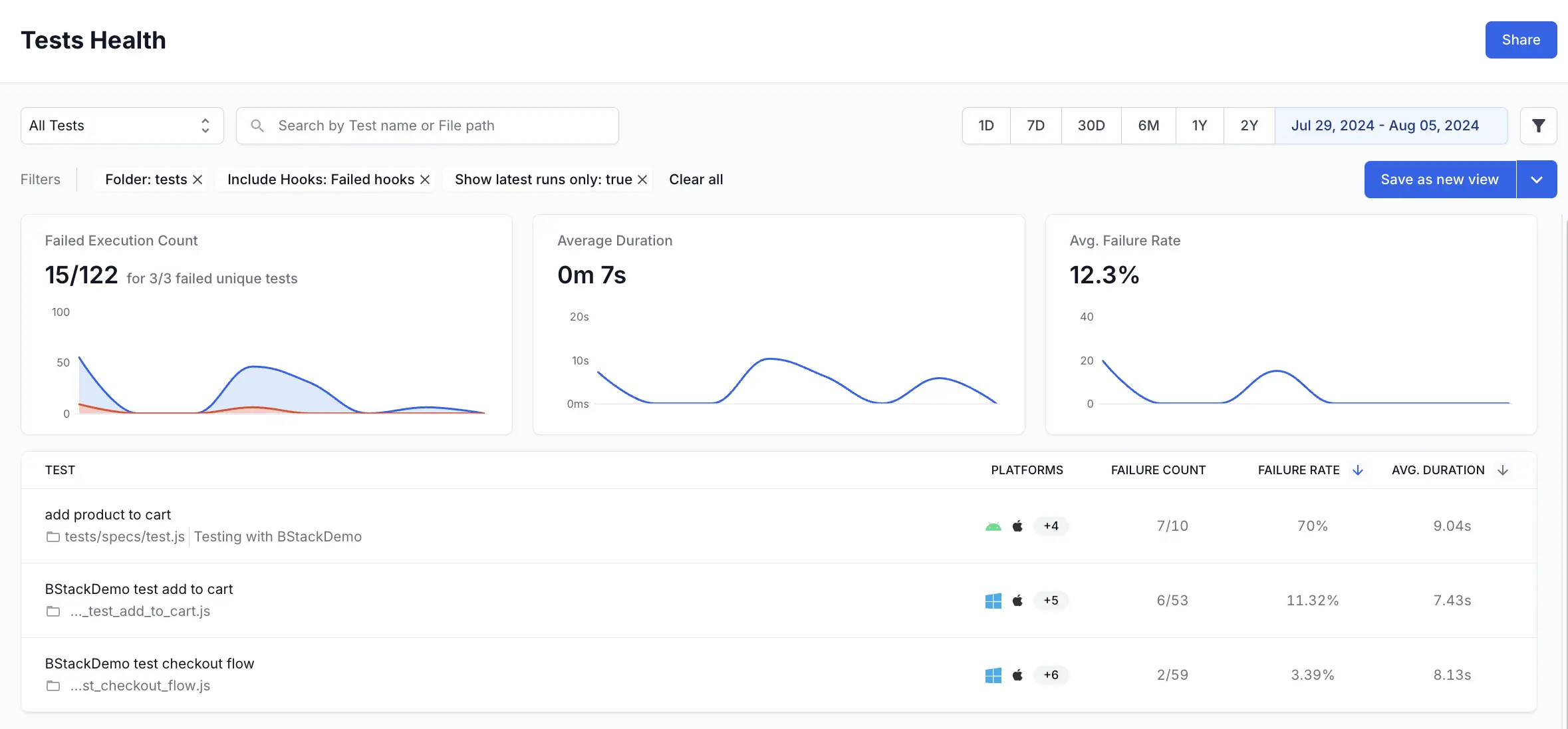

This opens Tests Health in a new tab with the applicable filters. On Tests Health, you can view the individual tests that contribute to the failure count in specific folders and further investigate what caused the test failures.
