Integrate BrowserStack Automate with Azure Pipelines

Learn how to integrate Azure DevOps with the BrowserStack device cloud for running all your Playwright tests.

Overview

Azure Pipelines is a CI/CD platform that helps automate the build, test, and deployment of code projects. It supports a wide range of languages and tools, and provides pre-defined tasks and the ability to create custom tasks and integrations. It is a part of the Azure DevOps suite of tools for managing the development lifecycle of applications.

Note: The information in this section applies to using the BrowserStack plugin with Azure Pipelines as part of the Azure DevOps Services (cloud) offering only.

In this guide, you’ll learn how to:

Install the BrowserStack Azure DevOps Extension
Configure BrowserStack in Azure Pipelines
Configure BrowserStack Local in Azure Pipelines (for testing locally hosted websites)
View Test Reports in Azure Pipelines

Prerequisites

Before you can start integration, ensure that:

You’ve hosted your project on any of these source repositories supported by Azure.
You are a maintainer or owner of the project.
You are an administrator of your Azure DevOps organization.
You’ve created a pipeline for the project’s repository. If you are yet to create a pipeline, check out how to create an Azure Pipeline.
You have access to the BrowserStack account credentials, namely Access Key and Username.

Install the BrowserStack Azure DevOps Extension

The BrowserStack Azure DevOps Extension eases the process of configuring Azure Pipelines to run tests on BrowserStack. To install the extension follow these steps:

In the Visual Studio Marketplace, click Azure DevOps.
Search for BrowserStack Azure DevOps Extension.
On the BrowserStack Azure DevOps Extension page, click Get it Free.
To sign in to your Azure account, open the Sign in page. Once you’ve signed in, click Select an Azure DevOps organization and choose your organization.
Click Install to add the extension.

BrowserStack’s extension is now installed in your Azure DevOps organization. This installs the BrowserStack Config, BrowserStackResults, and BrowserStackStopLocal tasks to the list of available tasks for you to use them in your pipeline.

Configure BrowserStack in Azure Pipelines

For your tests to run on BrowserStack, the Azure Pipeline needs additional information, such as BrowserStack credentials.

You can create a pipeline using either a YAML editor or a classic editor. Depending on the editor you used to create the pipeline, refer to the steps in the following tabs to integrate BrowserStack in your pipeline.

YAML editor
Classic editor

Open the Azure portal page and click My Azure DevOps Organizations.
On the Azure DevOps Organizations page, click the project where you’ve created a pipeline for your project’s repostory from the list of projects that appear.
In the bottom-left corner of your project’s page click Project settings.
On the Project details page, click Service connections > Create service connection.
In the New service connection section, select BrowserStack from the given list, and click Next.
In the New BrowserStack service connection section, enter your BrowserStack Username in the Username field, and then enter Access key in the AccessKey field.
Click Verify to verify your BrowserStack credentials.
After verification succeeds, enter a service connection name in the Service connection name field, such as browserstack-connection, and then click Verify and save. The service connection gets added and you’re redirected to the Service connections page.
Click the (Pipelines) icon.
On the Pipelines page, select your pipeline.
Click Edit to edit the pipeline.
In the pipeline editor, from the Tasks pane, search for the BrowserStack Config task, and then select it.
In the BrowserStack Config section, select the connection, created in Step 8, from BrowserStack service end point
Click Add.
In the pipeline editor, from the Tasks pane, search for the BrowserStack Results task, and then select it.
In the BrowserStack Results section, enter automate in the Enter the product in use field, and then click Add.

The following image shows the azure-pipelines.yml file with all the BrowserStack tasks configured to run your test on BrowserStack. YML file with BrowserStack tasks added

Note: Ensure to set the build capability in your test script using the environment variable BROWSERSTACK_BUILD_NAME. The extension will fail to embed test reports in your pipeline if this capability is missing. Check out Edit your test script to call environment variables to learn more.

You can set additional configuration options, such as enabling verbose logging, for the Local binary in the BrowserStackLocal Options input field. Check out Set Additional Configuration options to learn more.

Open the Azure portal page and click My Azure DevOps Organizations.
On the Azure DevOps Organizations page, select the project from the given list.
On the project’s page, click the Pipelines option.
On the Pipelines page, click to select your pipeline.
On the pipeline’s page, click Edit to edit your pipeline.
In the Tasks tab, click the Add (+) icon next to the Agent Job 1 card.
In the Add tasks pane, select the BrowserStack Config task from the tasks list, and click Add.
Click the BrowserStack configuration setup card and click + New.
Create a new service connection using the following steps in the New service connection screen:
a. Enter your BrowserStack Username.
b. Enter your BrowserStack Access key.
c. Click Verify.
d. After verification succeeds, enter a name for service connection.
e. Click Verify and save.
In the Tasks tab, click + on the Agent job 1 card to add the BrowserStack Results task.

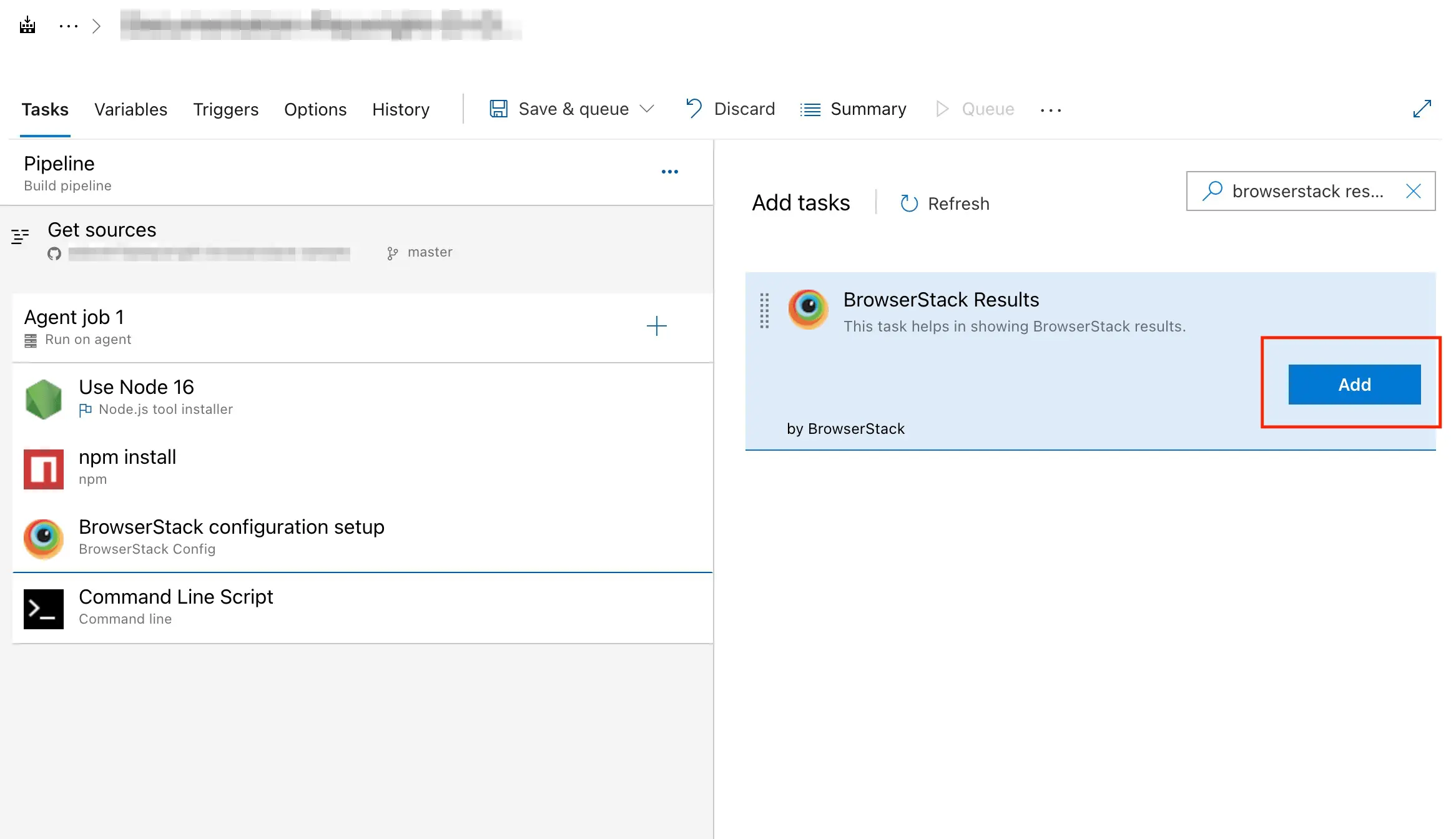

In the Add tasks panel, from the tasks list, select the BrowserStack Results task and click Add.

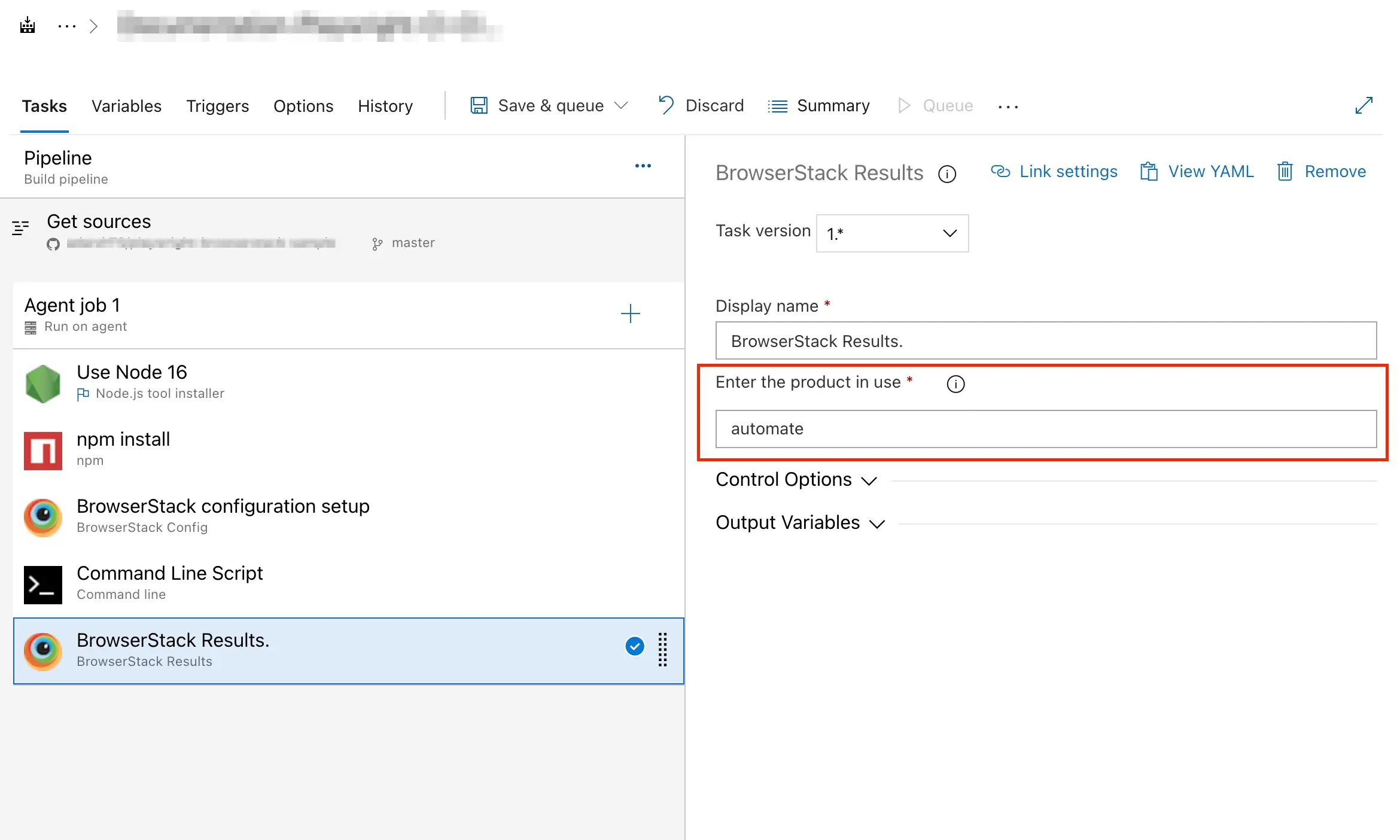

Click the BrowserStack Results card and enter automate in the Enter the product in use field.
Click Save & queue and select Save to save the changes.

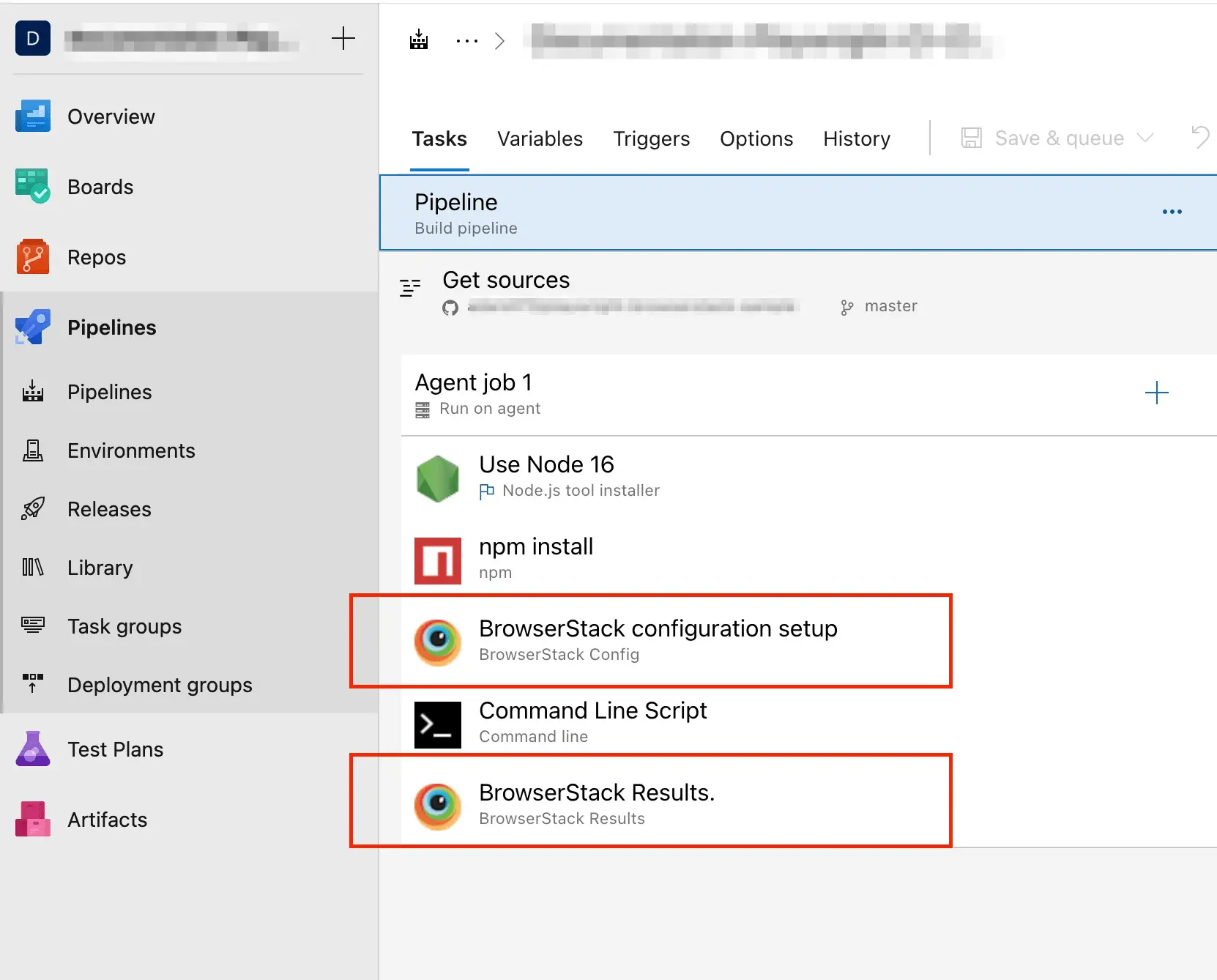

The following image shows all the BrowserStack tasks configured in the pipeline to run your test on BrowserStack. BrowserStack tasks added

Your build pipeline is successfully configured to connect with the BrowserStack cloud for your project.

Configure BrowserStack Local in Azure Pipelines

Use BrowserStack Local Testing to test your web applications hosted on private, development, and internal servers. With the BrowserStack Local Testing binary, you can create a secure, private connection between the BrowserStack your internal servers.

Configuring BrowserStack Local involves:

Setting environment variables
Editing test scripts to use environment variables
Starting the BrowserStack Local
Stopping the BrowserStack Local

Set variables for BrowserStack Azure DevOps Extension

The BrowserStack Azure DevOps extension, by default, sets the following environment variables:

BROWSERSTACK_USERNAME
BROWSERSTACK_ACCESS_KEY
BROWSERSTACK_LOCAL
BROWSERSTACK_LOCAL_IDENTIFIER
BROWSERSTACK_BUILD_NAME

When you create a service connection, the BROWSERSTACK_USERNAME and the BROWSERSTACK_ACCESS_KEY are automatically added as variables during the configuration step.

In addition, when you add the BrowserStack Config task in your pipeline, the BROWSERSTACK_LOCAL and BROWSERSTACK_LOCAL_IDENTIFIER environment variables are set automatically by the extension.

The extension also adds the BROWSERSTACK_BUILD_NAME variable that autogenerates a build name for your test runs.

Edit your test script to call environment variables

Edit your test script to add the environment variables for setting capabilities using the following code snippets:

username = process.env.BROWSERSTACK_USERNAME
accessKey = process.env.BROWSERSTACK_ACCESS_KEY
var buildName = process.env.BROWSERSTACK_BUILD_NAME;
browserstackLocal = process.env.BROWSERSTACK_LOCAL
browserstackLocalIdentifier = process.env.BROWSERSTACK_LOCAL_IDENTIFIER

var capabilities = {
 "os" : "os x",
 "browser" : "playwright-firefox",
 	"build" : buildName, // CI/CD job name using BROWSERSTACK_BUILD_NAME env variable
 "browserstack.local" : browserstackLocal,
 "browserstack.localIdentifier" : browserstackLocalIdentifier,
 "browserstack.user" : username,
 "browserstack.key" : accessKey
}

username = os.getenv("BROWSERSTACK_USERNAME")
access_key = os.getenv("BROWSERSTACK_ACCESS_KEY")
build_name = os.getenv("BROWSERSTACK_BUILD_NAME")
browserstack_local = os.getenv("BROWSERSTACK_LOCAL")
browserstack_local_identifier = os.getenv("BROWSERSTACK_LOCAL_IDENTIFIER")

caps = {
 'os': 'os x',
 'browser': 'playwright-firefox',
 'build': build_name, # CI/CD job name using BROWSERSTACK_BUILD_NAME env variable
 'browserstack.local': browserstack_local,
 'browserstack.localIdentifier': browserstack_local_identifier,
 'browserstack.user': username,
 'browserstack.key': access_key
}

String username = System.getenv("BROWSERSTACK_USERNAME");
String accessKey = System.getenv("BROWSERSTACK_ACCESS_KEY");
String browserstackLocal = System.getenv("BROWSERSTACK_LOCAL");
String buildName = System.getenv("BROWSERSTACK_BUILD_NAME");
String browserstackLocalIdentifier = System.getenv("BROWSERSTACK_LOCAL_IDENTIFIER");

DesiredCapabilities capabilities = new DesiredCapabilities();
capabilities.setCapability("os", "os x");
capabilities.setCapability("browser", "playwright-firefox");
capabilities.setCapability("build", buildName); // CI/CD job name using BROWSERSTACK_BUILD_NAME env variable
capabilities.setCapability("browserstack.local", browserstackLocal);
capabilities.setCapability("browserstack.localIdentifier", browserstackLocalIdentifier);

username = Environment.GetEnvironmentVariable("BROWSERSTACK_USERNAME");
accessKey = Environment.GetEnvironmentVariable("BROWSERSTACK_ACCESS_KEY");
buildName = Environment.GetEnvironmentVariable("BROWSERSTACK_BUILD_NAME");
browserstackLocal = Environment.GetEnvironmentVariable("BROWSERSTACK_LOCAL");
browserstackLocalIdentifier = Environment.GetEnvironmentVariable("BROWSERSTACK_LOCAL_IDENTIFIER");

capability.setCapability("os", "os x", true);
capability.AddAdditionalCapability("os_version", "big sur", true);
capability.AddAdditionalCapability("browser", "playwright-firefox", true);
capability.AddAdditionalCapability("build", buildName, true); // CI/CD job name using BROWSERSTACK_BUILD_NAME env variable
capability.AddAdditionalCapability("browserstack.local", browserstackLocal, true);
capability.AddAdditionalCapability("browserstack.localIdentifier", browserstackLocalIdentifier, true);
capability.AddAdditionalCapability("browserstack.user", username, true);
capability.AddAdditionalCapability("browserstack.key", accessKey, true);

Add task to start BrowserStack Local

When you add the BrowserStack Config task, you have an option to select BrowserStack Local to run your tests on any developement or staging environment. Based on the editor you used to create your pipeline, refer to the steps in the following tabs:

YAML editor
Classic editor

Navigate to your pipeline and click Edit.
In the Tasks pane, select BrowserStack Config from the tasks list.
Select the service endpoint you created earlier.

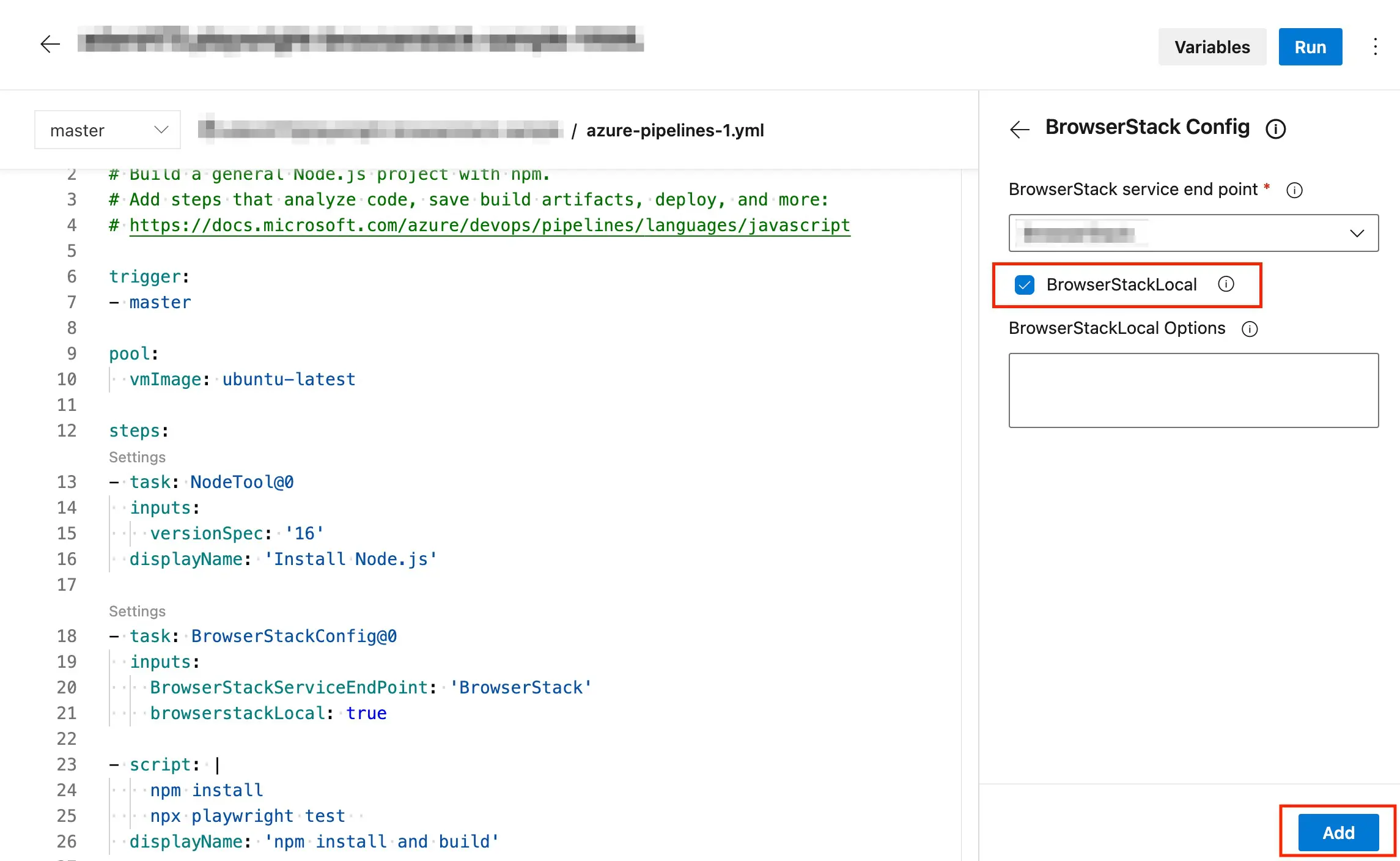

Select the BrowserStackLocal checkbox, and then click Add. Note: You can set additional configuration options, such as enabling verbose logging, for the Local binary in the BrowserStackLocal Options input field. Check out Set Additional Configuration options to learn more.

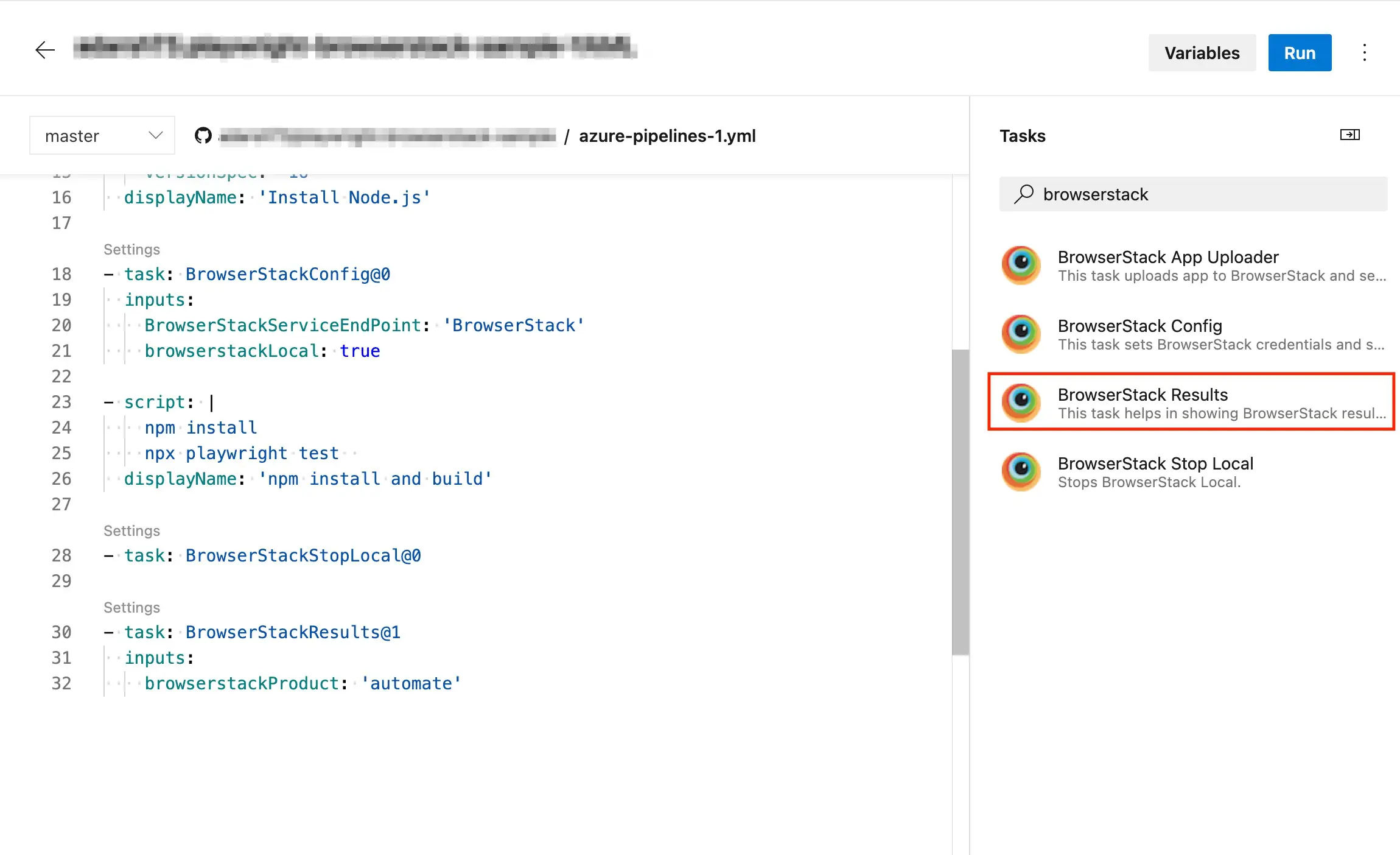

In the Tasks pane, select BrowserStack Results from the tasks list.

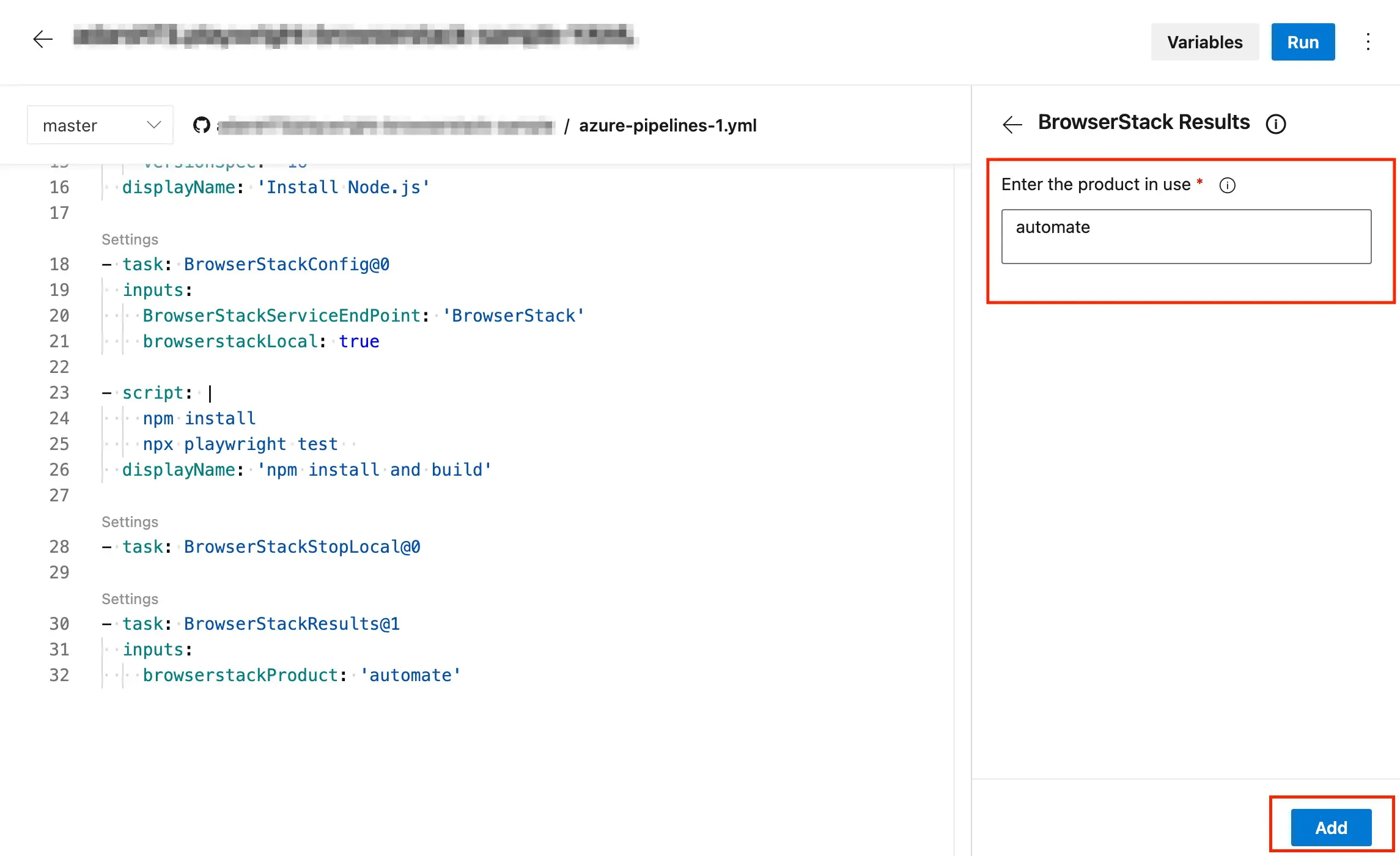

In the BrowserStack Results section, enter automate in the Enter the product in use field, and then click Add.

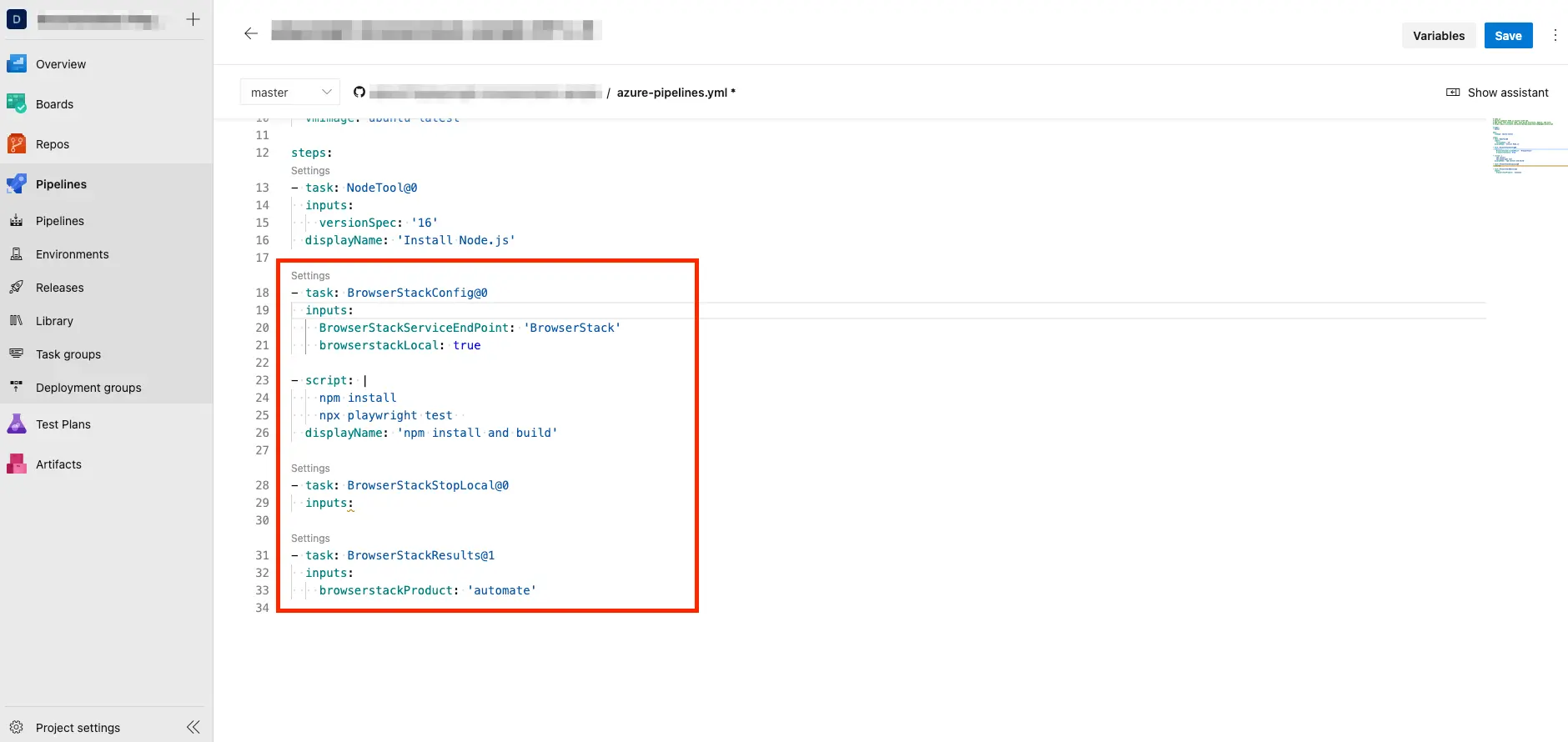

The following image shows the azure-pipelines.yml file with all the BrowserStack tasks and local configured to run your test on BrowserStack.

YAML with local enabled

Navigate to your pipeline page and click Edit.
In the Tasks tab, click the BrowserStack configuration setup card.
In the BrowserStack Config section, select the BrowserStackLocal checkbox. Note: You can set additional configuration options, such as enabling verbose logging, for the Local binary in the BrowserStackLocal Options input field. Check out Set Additional Configuration options to learn more.
In the Tasks tab, click + on the Agent job 1 card to add the BrowserStack Results task.
In the Add tasks panel, from the tasks list, select the BrowserStack Results task and click Add.
Click the BrowserStack Results card and enter automate in the Enter the product in use field.
Click Save & queue and select Save to save the changes.

The following image shows the azure-pipelines.yml file with all the BrowserStack tasks and local configured to run your test on BrowserStack. BrowserStack tasks added

Add task to stop BrowserStack Local

It is recommended to stop the BrowserStack Local binary after tests have been executed to optimize your resources. Add the BrowserStack Stop Local task in your pipeline using the following steps:

YAML editor
Classic editor

Navigate to your pipeline and click Edit.

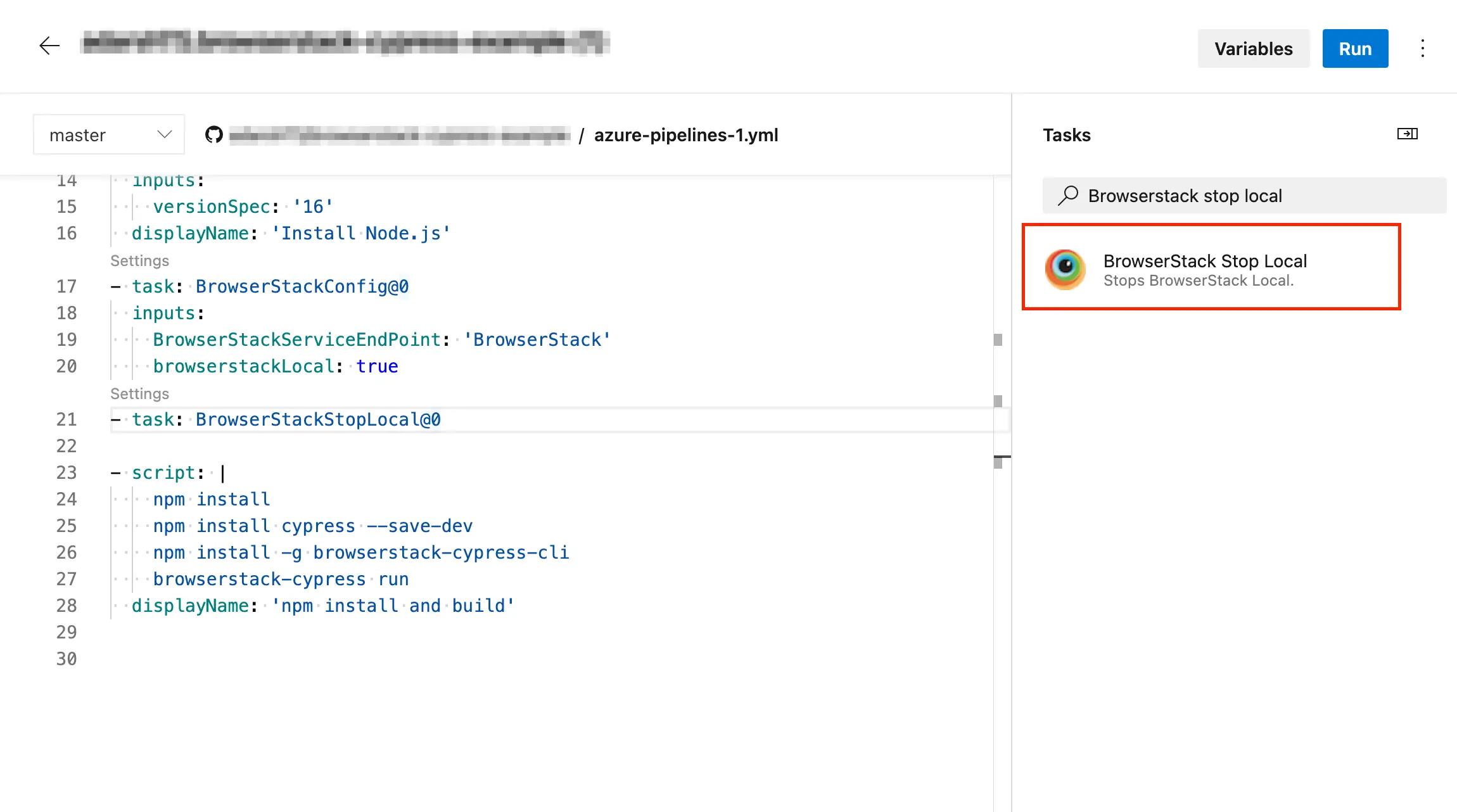

In the Tasks pane, search for BrowserStack Stop Local from the tasks list, and then select it.

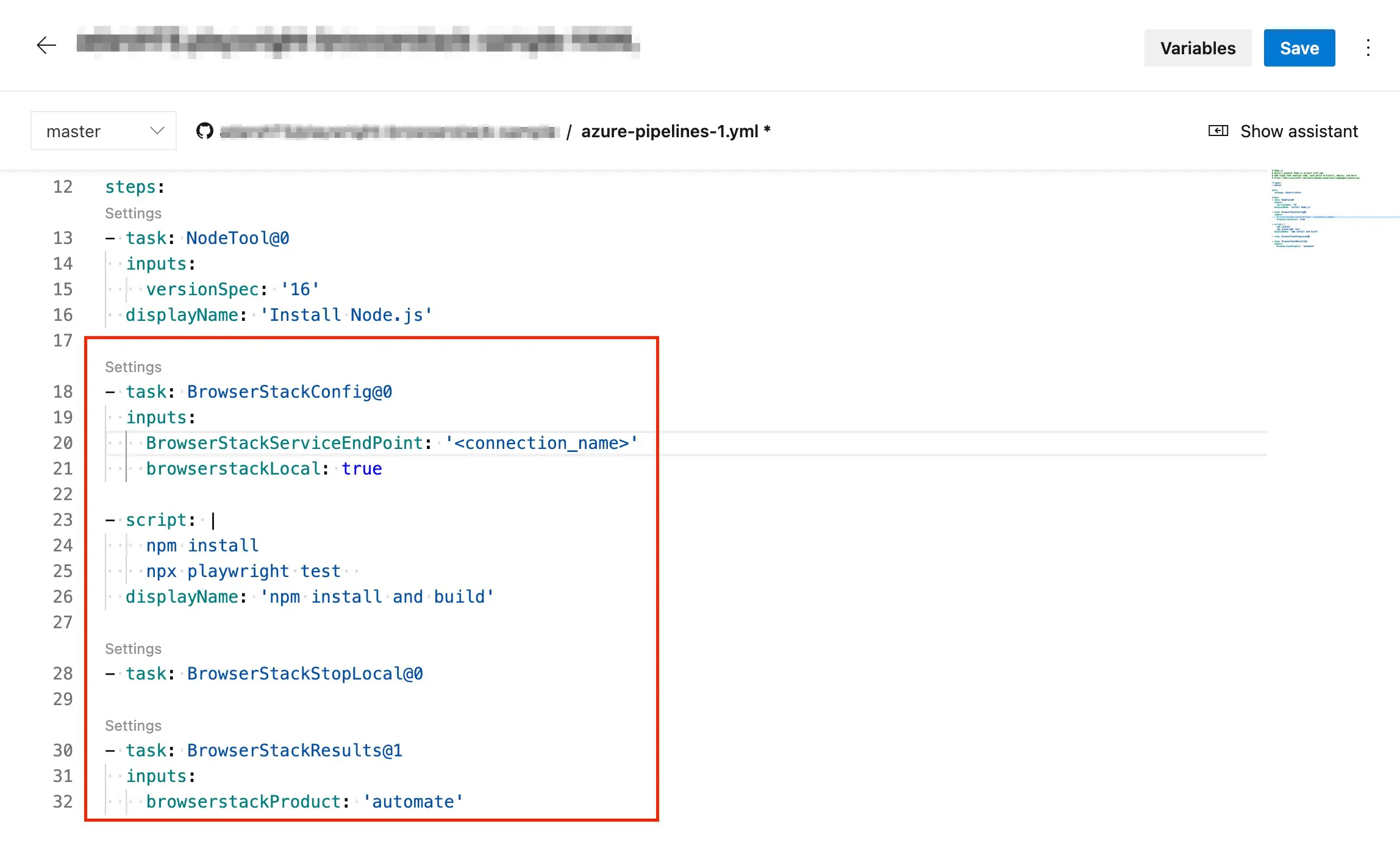

The following image shows the azure-pipelines.yml file with all the BrowserStack tasks configured to run your local test on BrowserStack. YML file with BrowserStack local tasks added

Navigate to your pipeline and click Edit.
In the Task tab, click + on the Agent job 1 card.

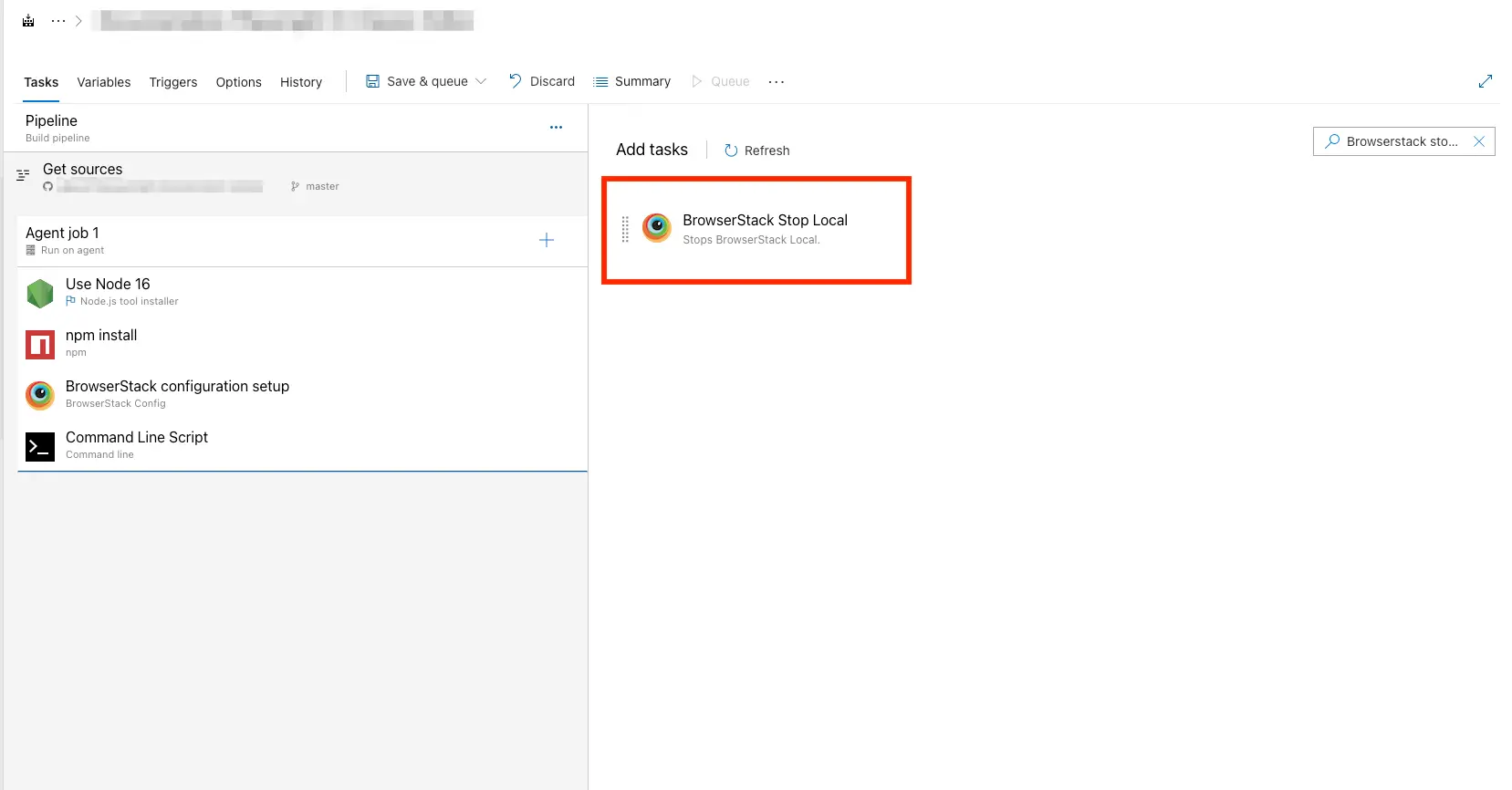

Search for BrowserStack Stop Local and click Add.
Click Save & queue and select Save to save the changes.

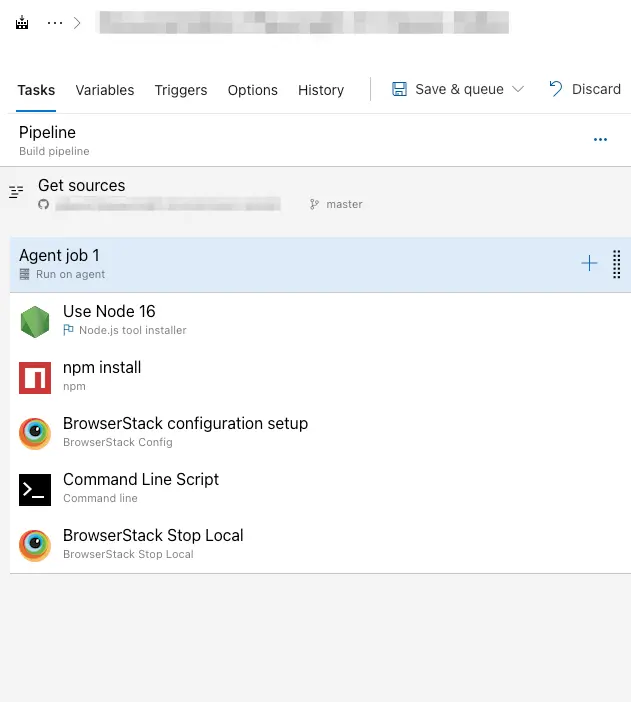

The following image shows all the BrowserStack tasks configured to run your local test on BrowserStack.

Classic stop local tasks

Note: If you dont prefer to use Browserstack extension to start and stop local then you can also use an npm package or use binary to setup and tear down local.

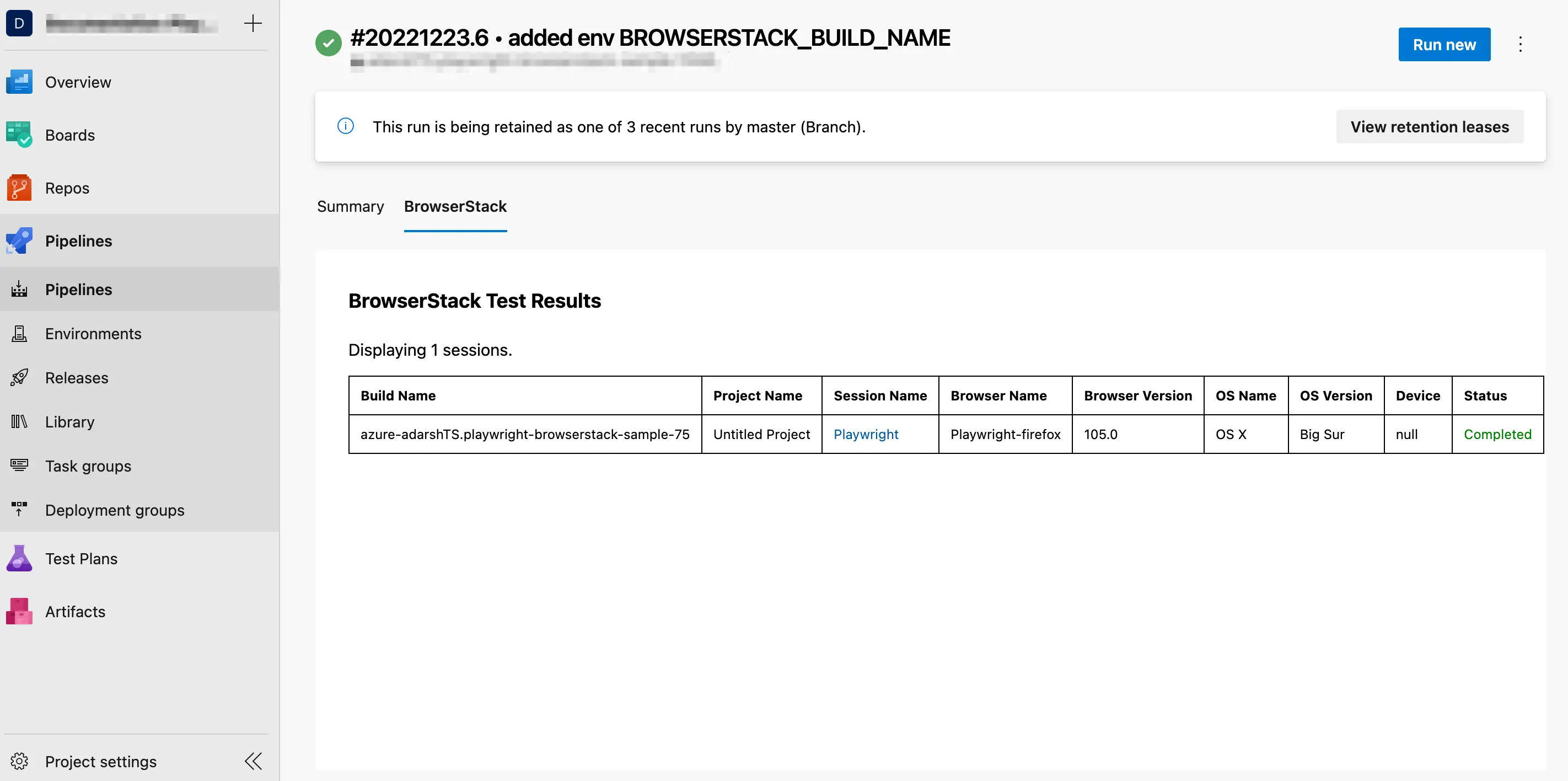

View Test Reports in Azure Pipelines

The BrowserStack Azure Pipelines plugin enables you to embed the test results from BrowserStack into Azure Pipelines.

With this integration, you can now start testing your web applications and view your test results within Azure Pipelines. The following image shows how the test results appear in Azure Pipelines: Browserstack test results
