Call an API and extract values

Learn how to call an API endpoint from a test and extract response values into variables in App Low Code Automation.

App Low Code Automation lets you make API calls while recording your test, solving the complexity of automating test cases that involve dependencies beyond the app UI. You can integrate API calls directly into tests for:

• Initializing test environments
• Invoking specific services
• Checking backend conditions
• Managing test data

Add API step

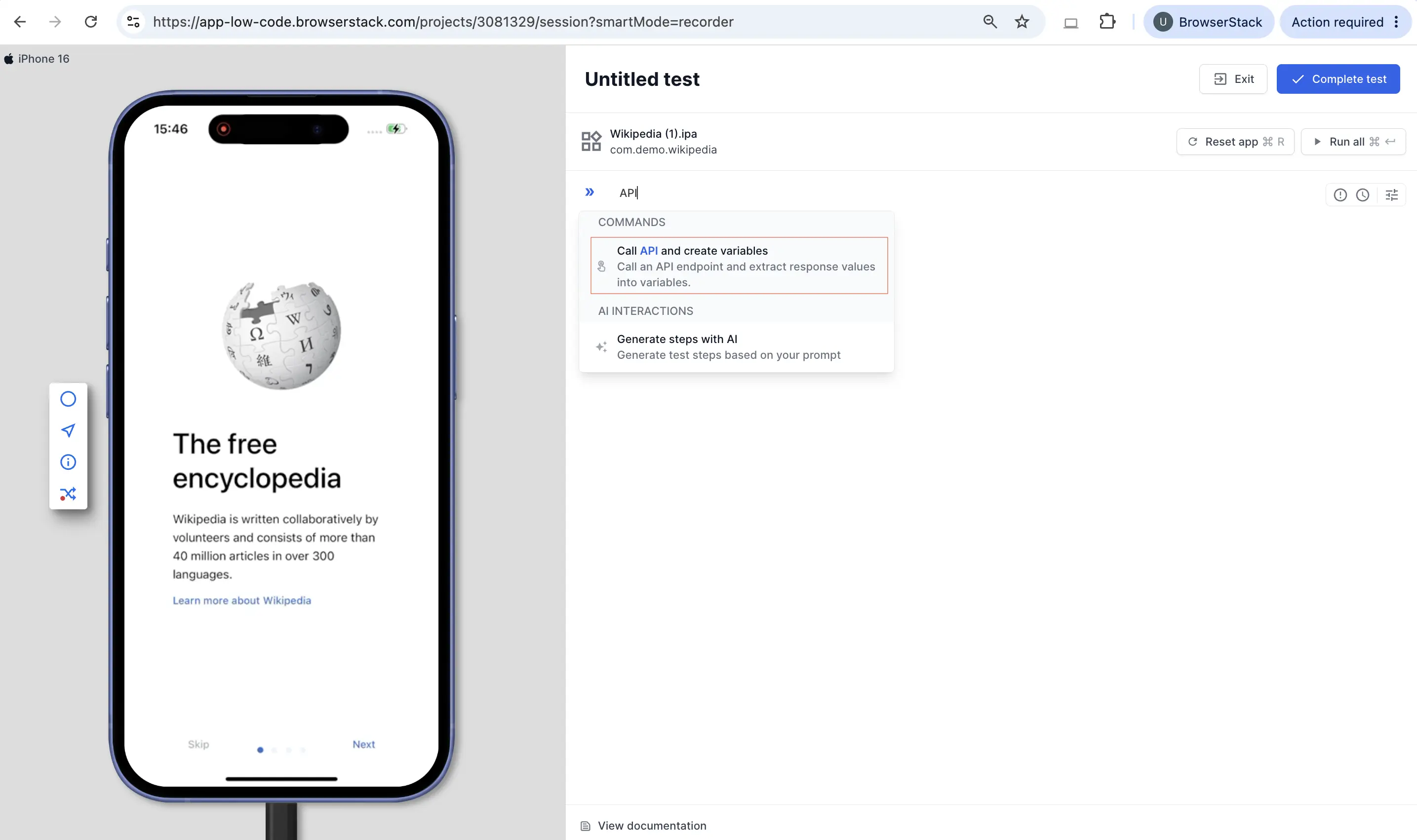

To add an API request in your test, type API in the test editor and select the Call API and create variables command.

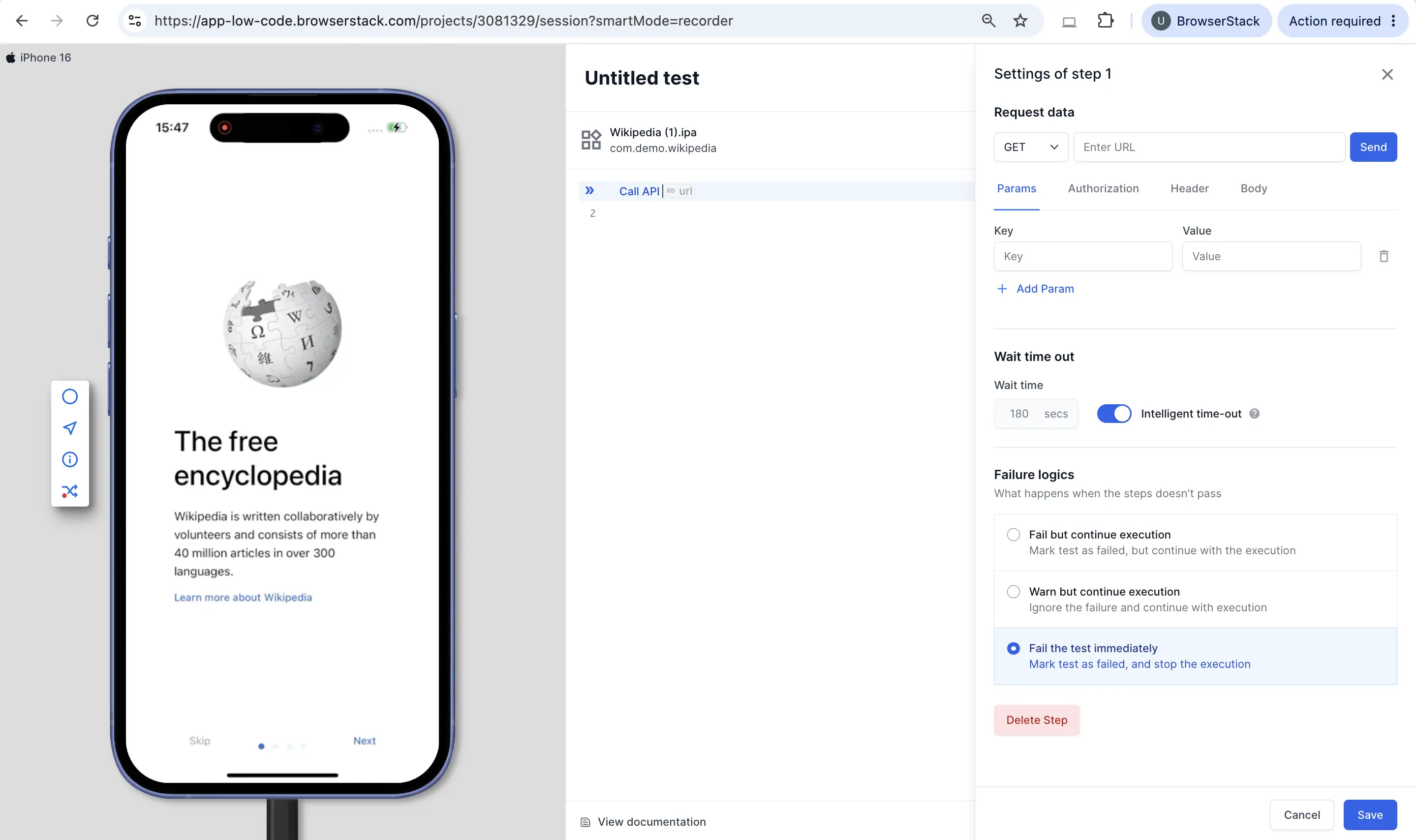

The Settings of step panel opens, where you configure the request data, wait timeout, and failure logic.

Request data

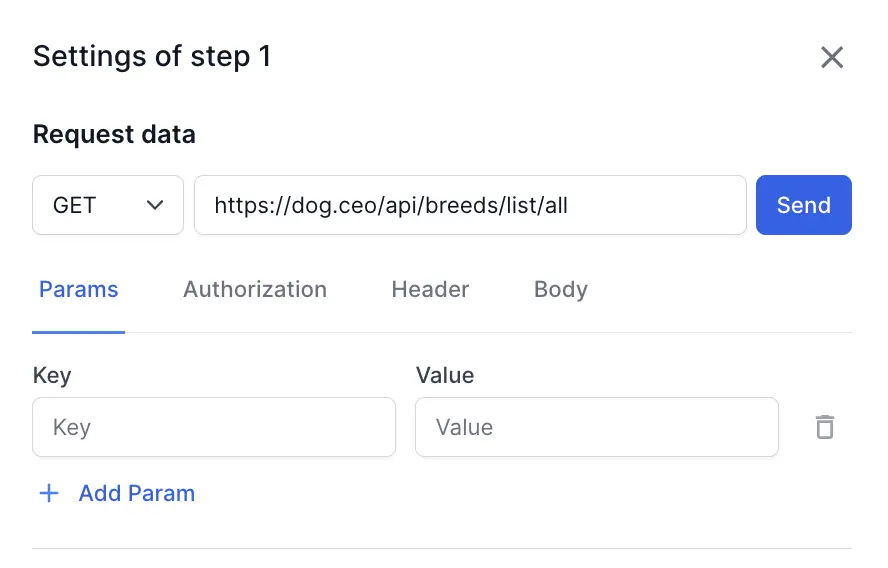

In the Request data section, select the HTTP method, enter the API URL, and configure the request using the Params, Authorization, Header, and Body tabs. Click Send to run the request.

Extract values from API responses

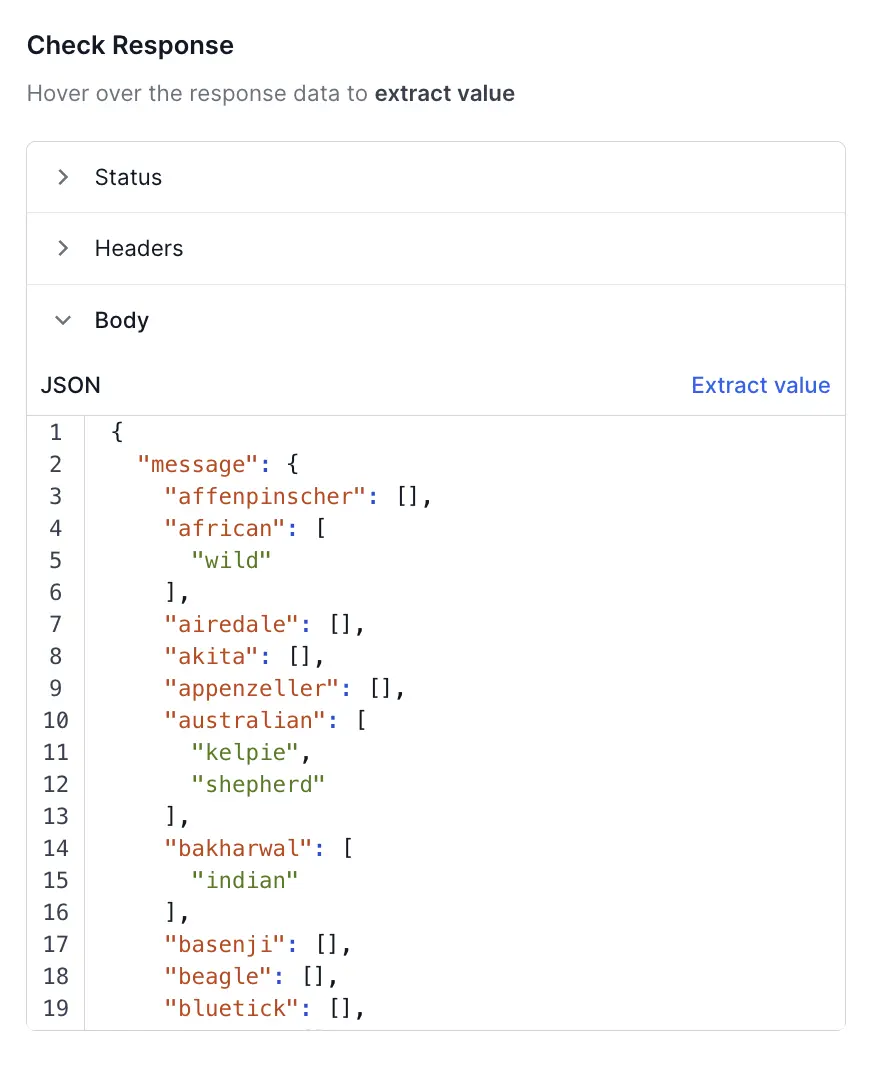

After you fill in the request fields and click Send, the request runs and a response populates. The Check Response section contains:

• Status
• Headers
• Body

You can then extract values from the response and store them in variables to reuse in later steps of your test.

Extract value from JSON response

To store any response status, header, or body value from a JSON response into a variable:

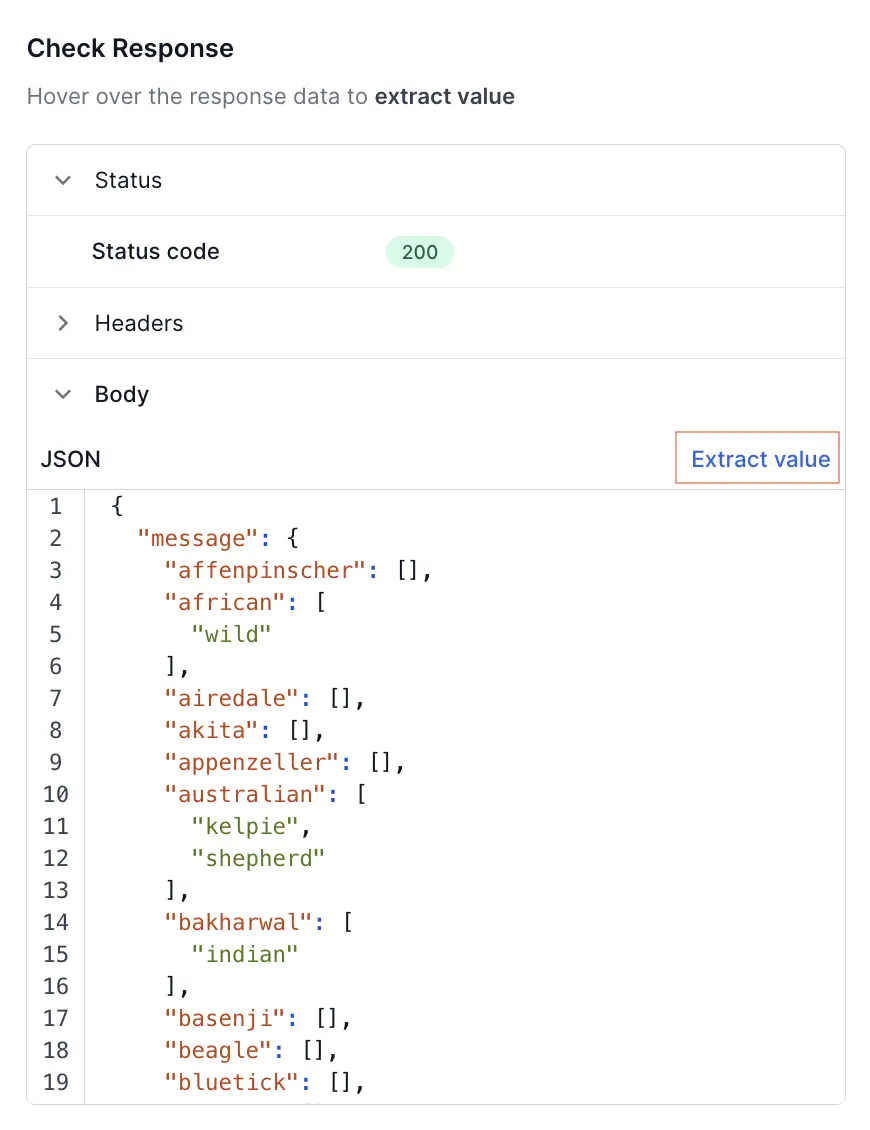

1. Expand the Body section to view the response and click Extract value.

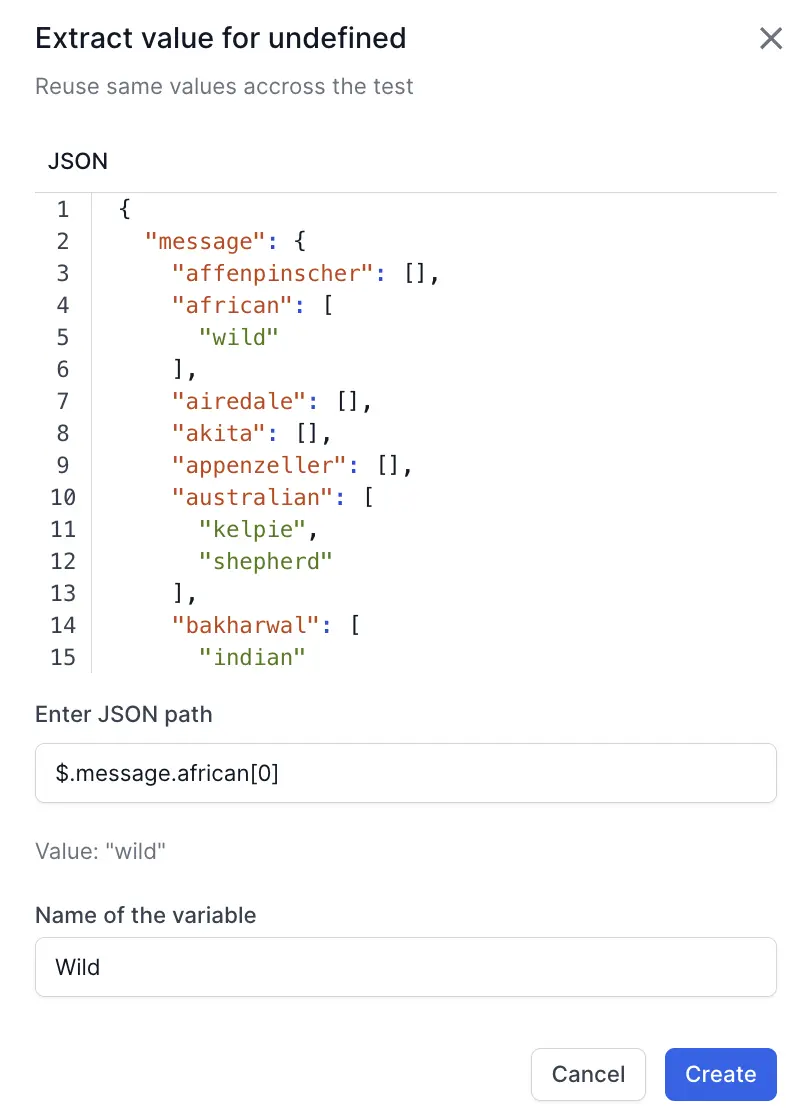

2. In the Enter JSON path field, enter the JSON path to the value you want to extract.
3. Enter a name for the variable, then click Create. The extracted value is stored in the variable and appears under Extracted value. The value updates on every execution, so you can reference it in subsequent test steps.

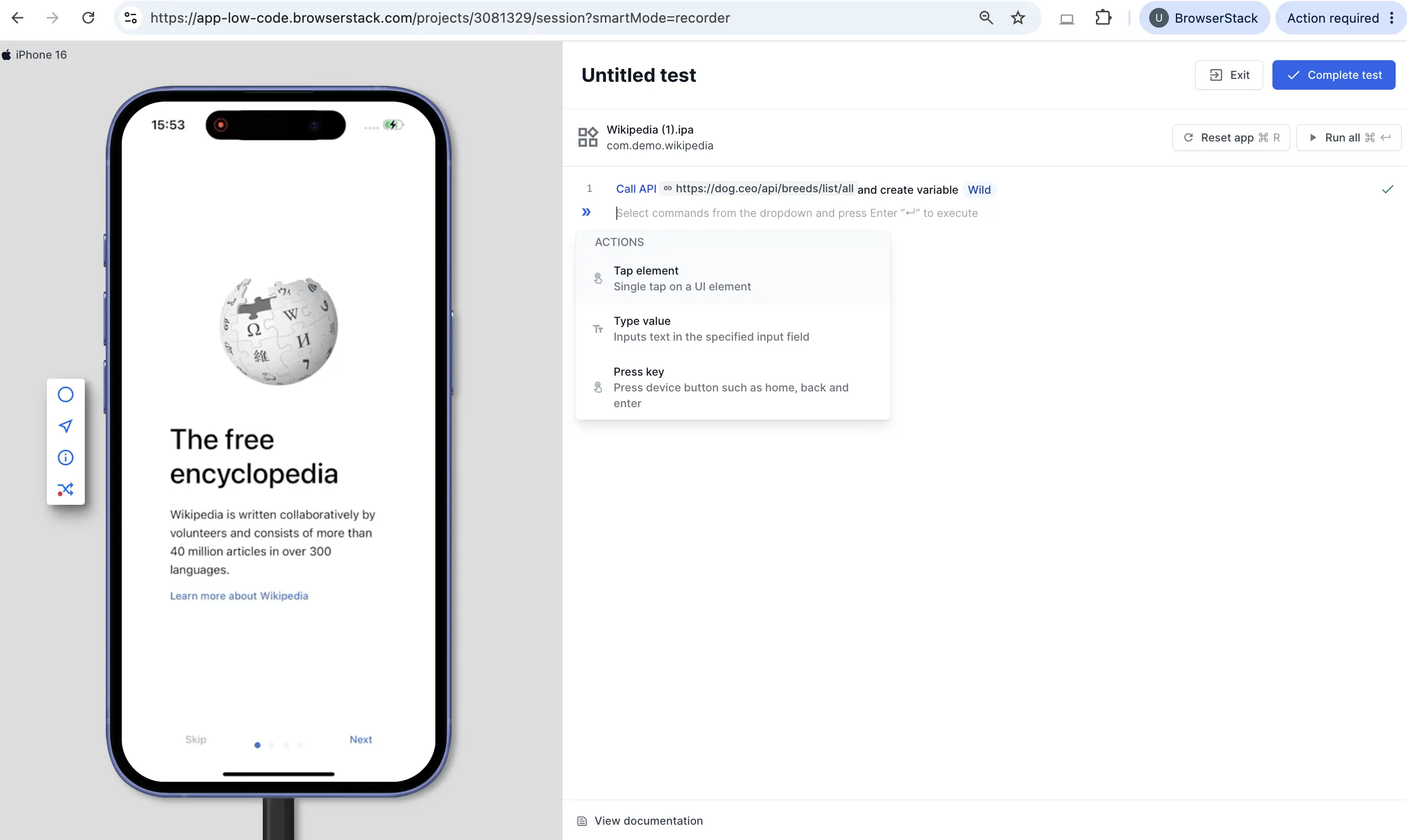

4. Click Save. The saved API step appears in the test step panel, showing the endpoint called and the variable created.

Extract value from XML response

To store any XML node or attribute value into a variable, click Extract value and use XPath to select the value you want to extract. You can then reference this variable in later test steps. For example, set the XPath to /user/id to extract the value 12345 from the following response:

<user>
  <id>12345</id>
  <name>Jane Doe</name>
</user>
