Build status calculation and visibility of tests and hooks
Learn how build status is calculated in Test Reporting & Analytics.
Build status
Build status in Test Reporting & Analytics helps you quickly identify how your builds and the associated tests ran.
Test Reporting & Analytics marks every build into one of the following statuses based on the status of the tests in the build:
- Passed
- Failed
- Skipped
- Running
- Unknown
When a build starts, Test Reporting & Analytics receives a build start
event and temporarily marks the build status of the build as running
. When the build runs, it receives multiple events from the testing framework one after the other. Test Reporting & Analytics continues to listen to all these events until it receives the build finish
event or when an Inactivity timeout
occurs.
The following table details how Test Reporting & Analytics determines the status of a build:
Build Status | Scenarios |
---|---|
Passed | 1. The build completed with 0 failed tests, 1 or more passed tests, any number of skipped or unknown tests. 2. Inactivity timeout occurred with 0 failed tests, 1 or more passed tests, 0 unknown tests, any number of skipped tests. |
Failed | The build completed or inactivity timeout occurred with 1 or more failed tests. |
Skipped | 1. The build completed with 0 failed, passed, unknown, and skipped tests. 2. The build completed with 0 failed tests, 0 passed tests, 1 or more skipped tests, any number of unknown tests. 3. Inactivity timeout occurred with 0 failed, 1 or more skipped tests, 0 unknown or passed tests. |
Running | The build is still running. |
Unknown | 1. The build completed with 0 failed tests, 0 passed tests, 0 skipped tests, 1 or more unknown tests. 2. Inactivity timeout occurred with 0 failed, unknown, skipped, or passed tests. 3. Inactivity timeout occurred with 0 failed tests, 1 or more unknown tests, any number of passed or skipped tests. |
Inactivity timeout
When you run a build, Test Reporting & Analytics receives multiple events from your test executions.
If the waiting time between receiving two events breaches a predefined limit, the build times out due to inactivity. This could happen due to issues like intermittent network connectivity issues, abrupt CI job crashes, and several other reasons. When inactivity timeout occurs, if Test Reporting & Analytics has not received the test finish
event of any test, it marks the status of such tests as unknown
.
Modify the inactivity timeout limit
By default, the inactivity timeout limit is 300 seconds. You can change this predefined limit as per your requirements.
A higher inactivity timeout duration will also mean that the build status will continue to show up as “Running” even if the build crashes on CI for as long as the inactivity timeout doesn’t expire.
Follow these steps to modify the inactivity timeout limit in Test Reporting & Analytics:
-
Go to Settings > General.
-
Update Timeout for build and click Save changes.
You can contact support if you continue to see that tests are marked as unknown
even after modifying the inactivity timeout limit.
Visibility of hooks and tests
Test count in Test Reporting & Analytics
Test Reporting & Analytics tracks the total number of tests in a build, along with counts of passed
, failed
, skipped
, and unknown
tests.
You can view the total test count in the Build Summary widget in Build Insights. You can also view the number of passed
, failed
, skipped
, and unknown
tests at the top-right-hand corner of the Build Insights page and also in a few other widgets.
The following screenshot highlights the test count and the test status count displayed in Build Insights:
How hooks are handled in Test Reporting & Analytics
Test Reporting & Analytics handles hooks that run with each test case (like beforeEach
and afterEach
) differently from the hooks that run once for a block of test cases or at a file level (global hooks like beforeAll
, and afterAll
).
Hooks that run with each test case are always excluded from the test listing by Test Reporting & Analytics. You can view such hooks only inside a test.
In contrast, Test Reporting & Analytics provides you with four options to handle the hooks that run once for a block of tests or at a file level (global hooks):
- Do not show any global hooks in the test listing.
- Show only failed
beforeAll
hooks in the test listing. This is the default setting. - Show only failed hooks in the test listing so that you get visibility on all types of failures.
- Show all hooks (both passing and failing) in the test listing for complete visibility.
Change hooks visibility in the test count and metrics
For hooks that run once for a block of tests or at a file level (global hooks), Test Reporting & Analytics shows only failed beforeAll
hooks in the test listing by default.
However, you can change this setting. Changing it alters the behavior of some features and how Test Reporting & Analytics calculates certain metrics, including test count for billing.
The following main features and metrics change when you modify the global hooks setting:
- Test Listing shows the type of global hooks you selected, as separate tests. If you choose Ignore all hooks, global hooks will not appear in the test listing.
- Aggregate test count and the widgets in Build Insights will include global hooks as separate tests. If you choose Ignore all hooks, the aggregate test count will not include any global hooks.
- Tests Health metrics like
Failure count
andFailure rate
will include such global hooks as separate tests. If you choose Ignore all hooks, these metrics will not include any global hooks. - Testing Trends metrics and widgets will include global hooks as separate tests. If you choose Ignore all hooks, these metrics and widgets will not include any global hooks.

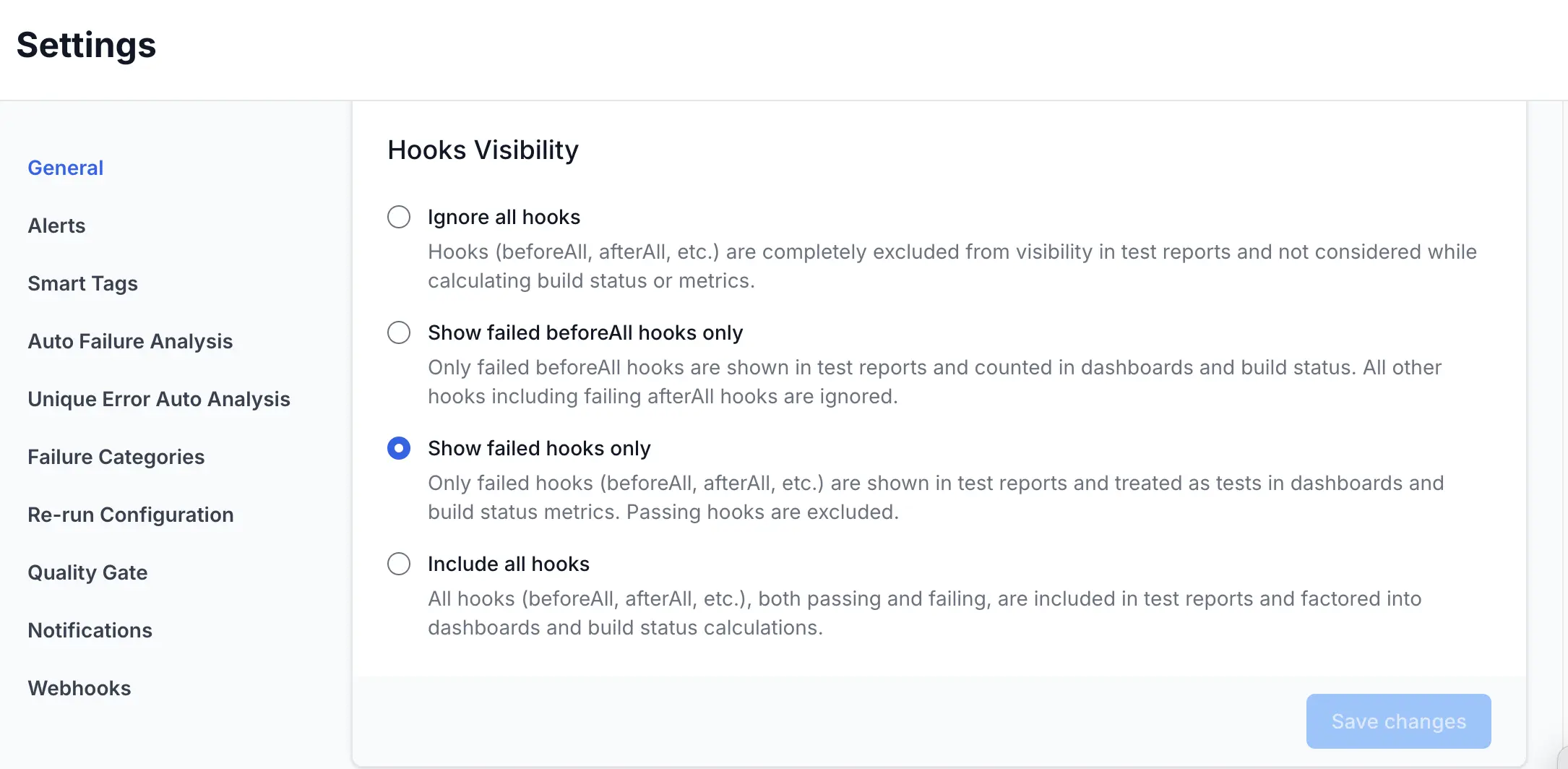

To select how to treat hooks in your test suite:
-
Go to Settings > General.
-
Under Hooks visibility, select one among Ignore all hooks, Show failed beforeAll hooks only, Show failed hooks only, or Include all hooks.
-
Click Save changes.
Handling hooks within custom alerts
Test Reporting & Analytics allows users to set up custom alerts for every build. You have the option to ignore all hooks, show failed beforeAll hooks only, show failed hooks only, or include all hooks in the calculation of some of these alerts. Which hooks you want to include in the calculation influences the trigger point of these alerts.
